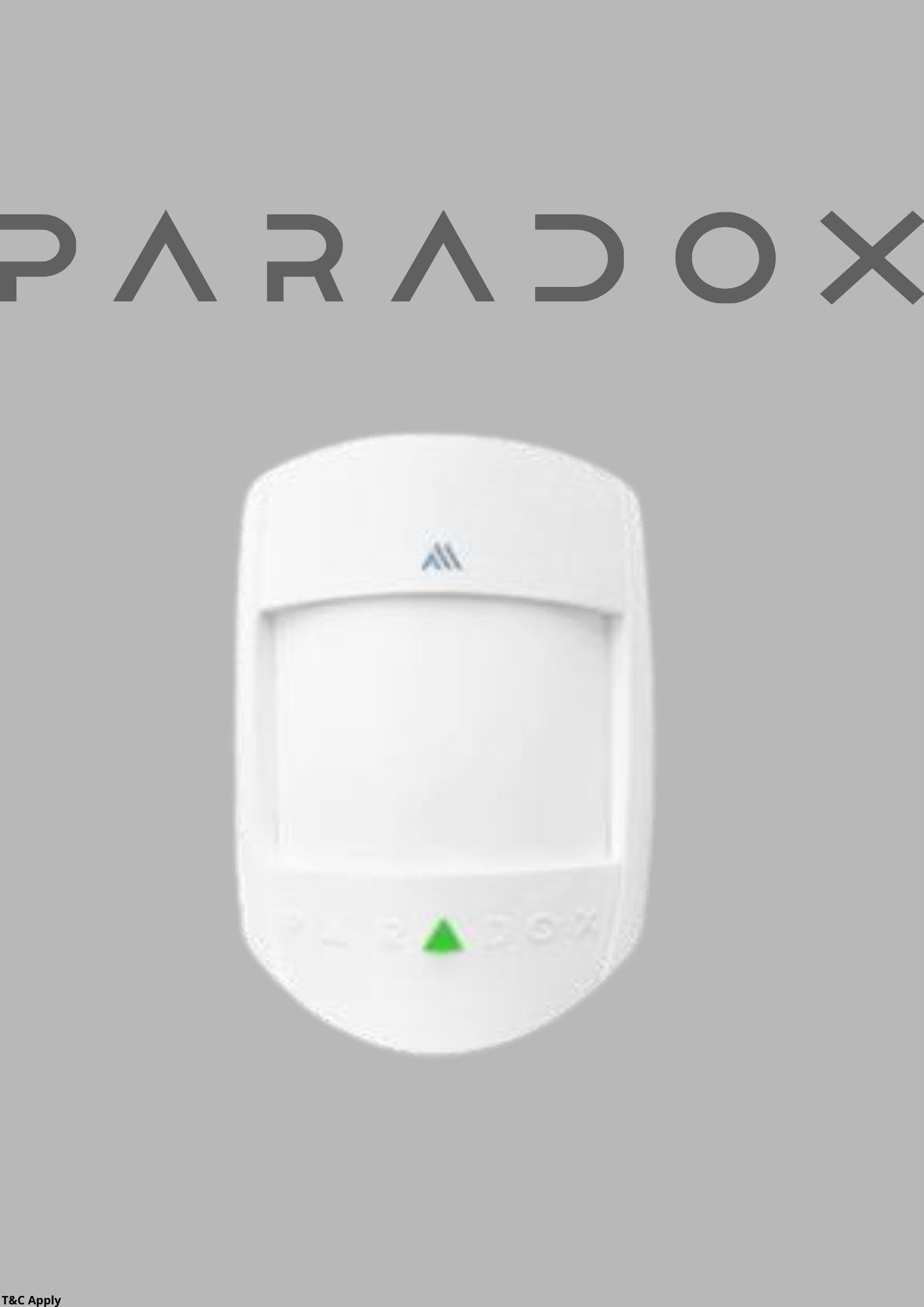

PMD3 M ANALOG SINGLE OPTIC PIR

Paradox PMD3M is a reliable indoor wireless motion detector with a single-optic PIR sensor and 110° coverage up to 12m. It features adjustable sensitivity, a built-in temperature sensor, and over 6 years of battery life. With secure two-way communication and remote firmware updates via Blue Eye, it offers dependable performance for indoor security.



-Indoor single-optic wireless PIR motion detector.

-Sensitivity level and detection energy control.

-6+ years of battery life with normal usage.

-Temperature sensor.

-Certifications: CE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247.



Wireless Type: GFSK two-way with frequency and encryption hopping.

Sensor Type: Dual rectangular element.

Coverage: 110° - 12m (39 ft) x 12m (39 ft).

Detection Speed: 0.2m/s to 3.5m/s (0.6 ft/s to 11.5 ft/s).

RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz. May vary by region.

RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.

Transmission Time: Less than 20ms.

Supervision Time: 20 minutes, 10 minutes (Default), and 3 minutes.

Status Indicators: Battery, temperature, TX/RX values.

Battery: 2 x AA lithium, 6+ years of battery life with normal usage.

Installation Environment: Indoor.

Firmware Upgrade: Remotely over the air, via BlueEye.

Operating Temperature: -20°C to +40°C (-4°F to 104°F).

Auto Learn: Yes.

Colors: White.

Dimensions: 6.6W x 9.9H x 6.1D cm (2.6W x 3.9H x 2.4D in.).

Weight: 0.13 Kg .
