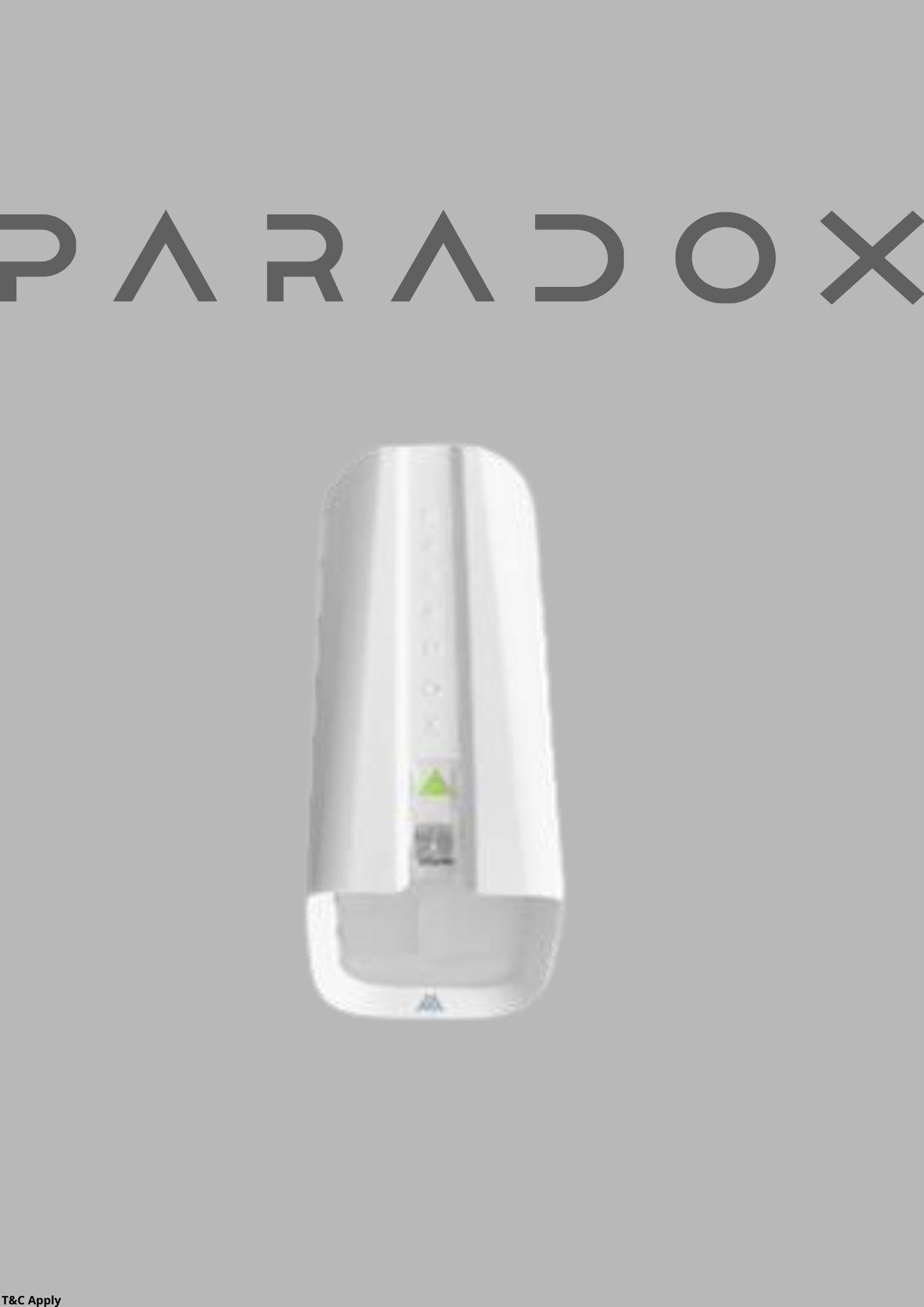

PMD37M OUTDOOR / INDOOR CURTAIN PIR ANTI MASK

Paradox PMD37M is a dual-optic indoor/outdoor PIR curtain detector with anti-mask protection and pet immunity. It offers adjustable sensitivity and a coverage range of 11-15m.



-Indoor/Outdoor dual-optic wireless PIR detector

-Pet-immunity

-Sensitivity level control

-Anti-mask sensitivity adjustments

-6+ years of battery life with normal usage

-Temperature sensor: -20°C to +40°C operating temperature

-Certifications: CE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247



-Wireless Type GFSK two-way with frequency and encryption hopping

-Sensor Type: 2 dual elements

-Coverage: 88.5° - 11m (36 ft) x 11m (36 ft); Center beams:15m (49.2 ft),

                  PET Immunity mode: 7.5m x 2m (25 x 7 ft)

-RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz. May vary by region.

-RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.

-Transmission Time: Less than 20ms

-Supervision Time: 20 minutes, 10 minutes (Default), and 3 minutes

-Status Indicators: Battery, temperature, TX/RX values

-Battery: 2 x AA lithium, 6+ years of battery life with normal usage.

-Installation Environment: Outdoor

-Firmware Upgrade: Remotely over the air, via BlueEye

-Operating Temperature: -20°C to +40°C (-4°F to 104°F)

-Auto Learn: Yes

-Colors: White

-Dimensions: 6.1W x 12.3H x4.3D cm (2.4W x 4.8H x 1.7D in.)

-Weight: 0.17 Kg
