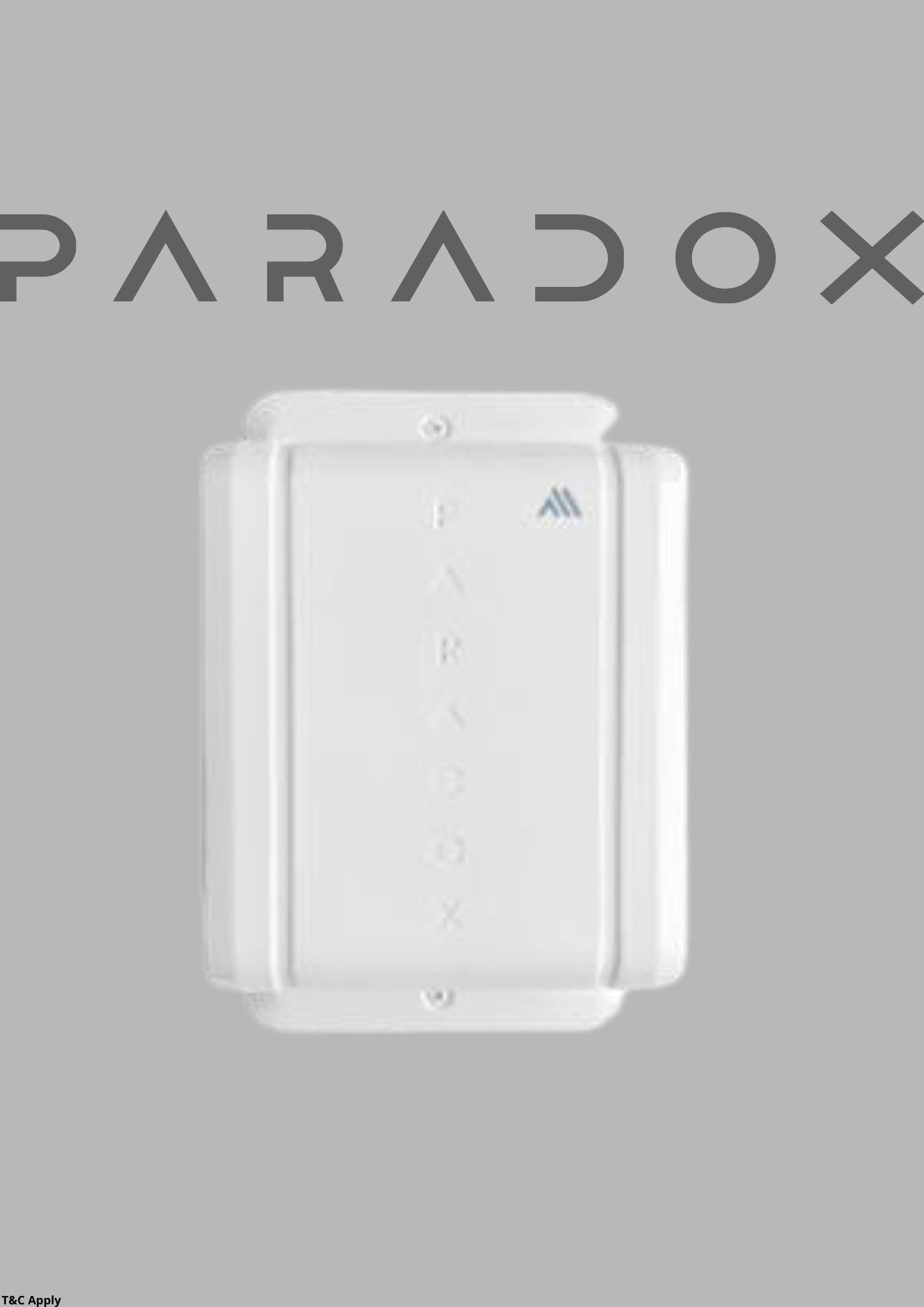

PMD780M OUTDOOR DUAL-SIDE VIEW PIR
PMD780M OUTDOOR DUAL-SIDE VIEW PIR
Regular price
R 4,306.00 ZAR
Regular price
Sale price
R 4,306.00 ZAR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
PMD780M offers dual-side motion detection up to 12m per side, with single or dual-zone reporting. Built for harsh environments, it features 6+ years of battery life, temperature sensing, and remote firmware updates.
Features:
-Outdoor dual-side detection
-Reports as single or dual units to separate zones
-Sensitivity level control
-Multiple processing modes
-6+ years of battery life with normal usage
-Temperature sensor -20°C to +40°C operating temperature
-Certifications: CE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247
Technical Specifications:
Wireless Type GFSK two-way with frequency and encryption hopping
Sensor Type: 4x dual low-noise rectangular elements
Coverage: 3m (9.8ft) – 12m (39.37ft) on each side
Detection Speed: 0.2m / sec.– 4m/sec. (0.6 ft/sec.– 13.1 ft /sec.)
RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz. May vary by region.
RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.
Transmission Time: Less than 20ms
Supervision Time: 20 minutes, 10 minutes (Default), and 3 minutes
Status Indicators: Battery, temperature, TX/RX values
Battery: 3 x AA lithium, 6+ years of battery life with normal usage.
Installation Environment: Outdoor
Firmware Upgrade: Remotely over the air, via BlueEye
Operating Temperature: -20°C to +40°C (-4°F to 104°F)
Auto Learn: Yes
Colors: White
Dimensions: 11W x 21H x 7D cm (4.3W x 8.2H x 2.7D in.)
Weight: 0.45 Kg
