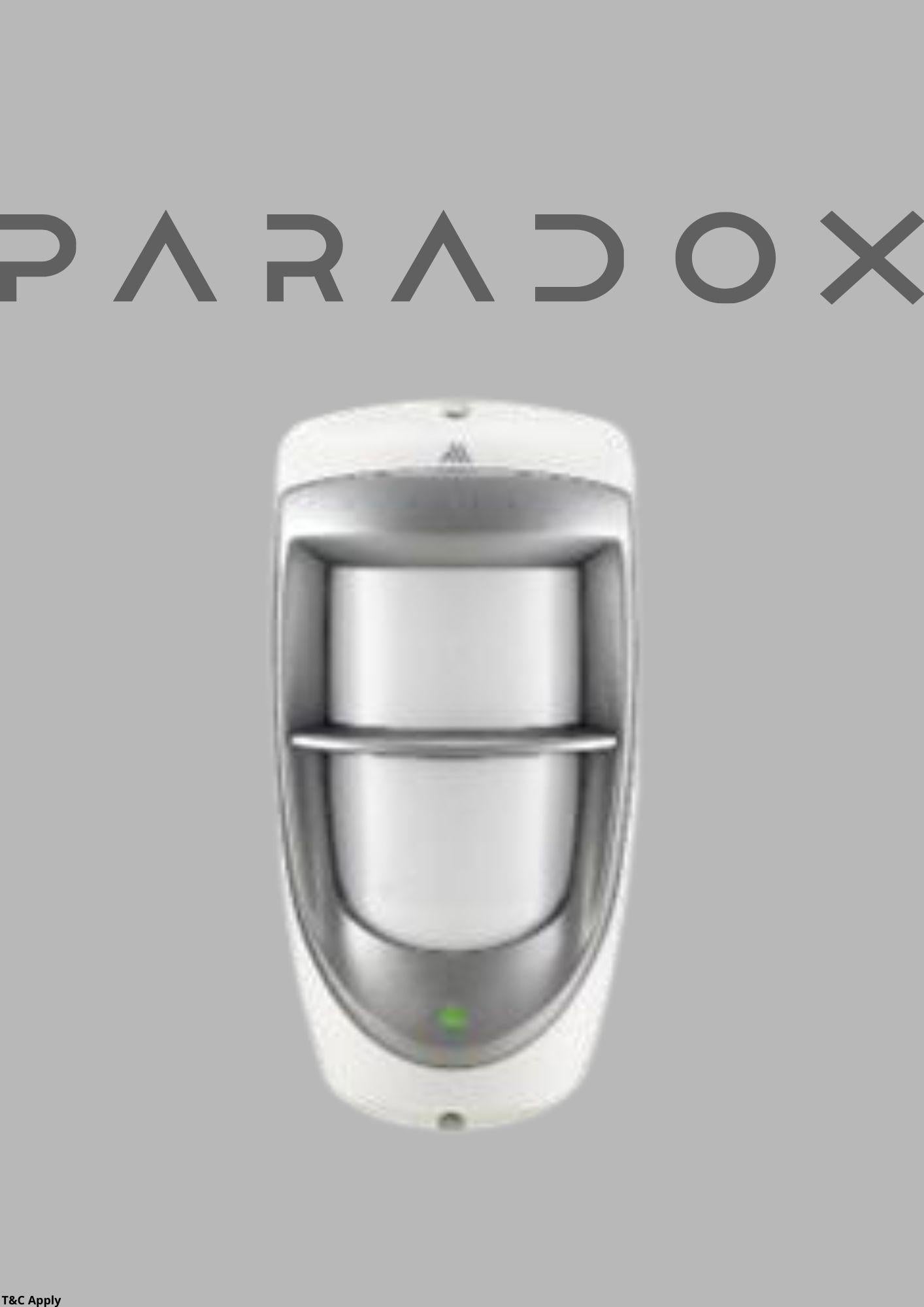

PMD85 M OUTDOOR PIR / PET IMMUNITY

Paradox PMD85M Outdoor Sensor is a robust dual-optic PIR motion detector, designed for reliable performance in harsh outdoor environments. It features an interchangeable pet-immune lens, making it ideal for securing open areas while minimizing false alarms caused by animals. With a Detection range of 90 Degree, 11m radius.

Features:

-Outdoor dual-optic PIR motion detector

-Advanced pet-immunity

-Sensitivity level and detection energy level control

-Changeable lenses

-Impact-resistant and temperature-resistant casing

-6+ years of battery life with normal usage

-Temperature sensor-20°C to +40°C operating temperature

-Multiple processing modes

-Certifications: CE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247



Wireless Type: GFSK two-way with frequency and encryption hopping

Sensor Type: Dual element infrared (x2)

Coverage: 90° - 11m (36 ft) x 11m (36 ft)

Detection Speed: 0.2m to 3.5 m/s (0.6 ft to 11.5 ft/s)

RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz. May vary by region.

RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.

Transmission Time: Less than 20ms

Supervision Time: 20 minutes, 10 minutes (Default),and 3 minutes

Status Indicators: Battery, temperature, TX/RX values

Battery: 3 x AA lithium, 6 +years of battery life with normal usage.

Installation Environment: Outdoor

Firmware Upgrade: Remotely over the air, via BlueEye

Operating Temperature: -20°C to +40°C (-4°F to 104°F)

Auto Learn: Yes

Colors: White

Dimensions: 8.3W x 17.5H x7.4D cm (3.29W x 6.9H x 2.9D in.)

Weight: 0.27 Kg
