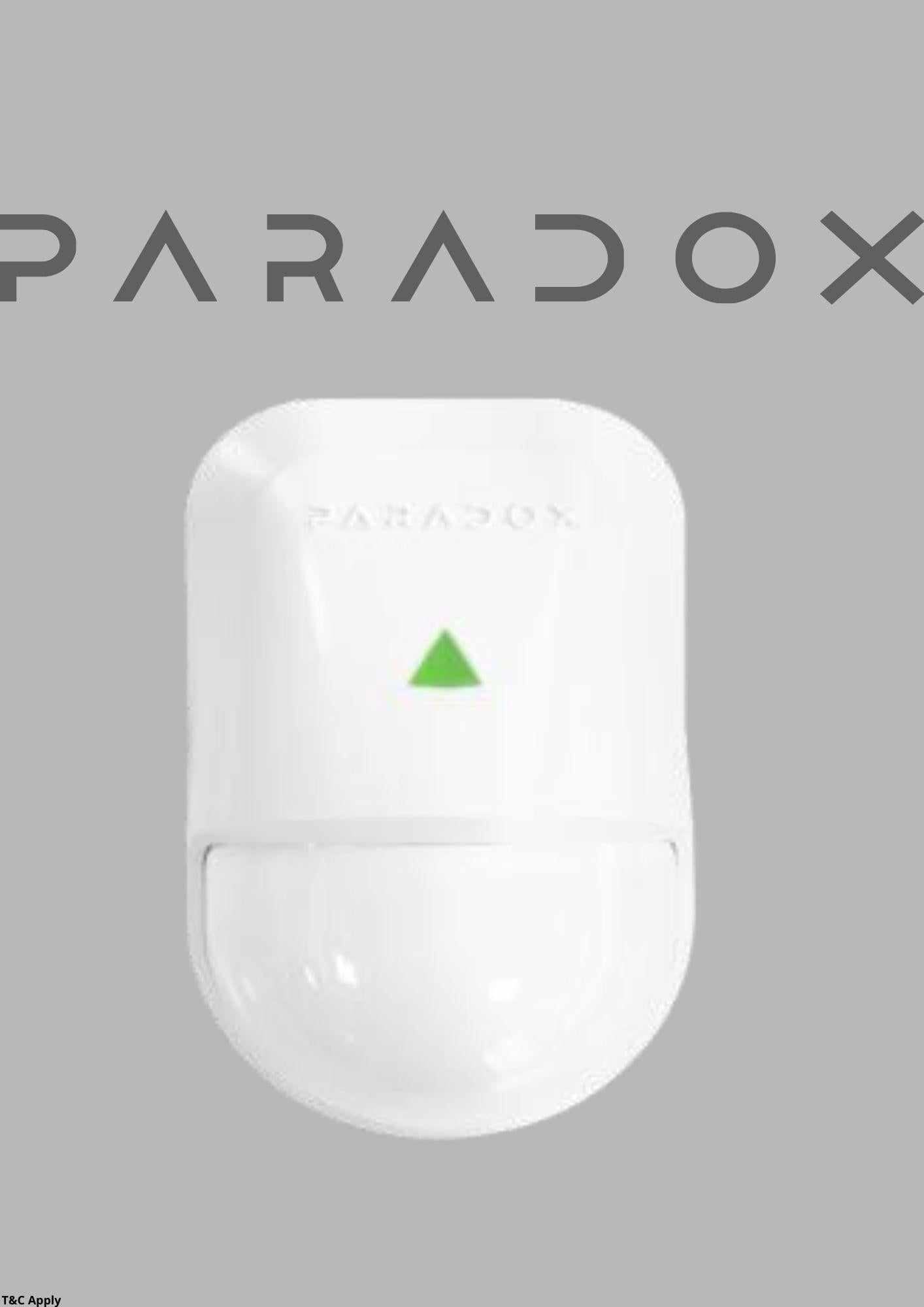

PMD5 MINDOOR MINIATURE PIR

Paradox PMD5M Sensor is a compact indoor motion detector with a dual-element PIR sensor and advanced down-looking creep zone for enhanced coverage. With a 110° detection range up to 12m, it offers reliable performance in a small form factor. It features 6+ years of battery life, adjustable sensitivity, and remote firmware updates via BlueEye.



-Miniature indoor motion detector.

-Dual-element PIR sensor.

-Super creep down-looking beam.

-Fast and easy installation with integrated bracket.

-Sensitivity level and detection energy control.

-Multiple processing modes.

-Temperature sensor.

-6+ years of battery life with normal usage.

-Certifications: CE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247.



Wireless Type: GFSK two-way with frequency and encryption hopping.

Sensor Type: Dual rectangular element.

Coverage: 110° - 12m (39 ft) x 12m (39 ft).

Detection Speed: 0.2m/s to 3.5m/s (0.6 ft/s to 11.5 ft/s).

RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz. May vary by region.

RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +22 dBm in permitted countries.

Transmission Time: Less than 20 ms.

Supervision Time: 20 minutes, 10 minutes (Default), and 3 minutes.

Status Indicators: Battery, temperature, TX/RX values.

Battery: 1 x CR123 lithium, 6+ years of battery life with normal usage.

Low Battery: Voltage 2.4V.

Low Battery: Restored.

Voltage 2.7V: (on powerup only).

Installation Environment: Indoor.

Firmware Upgrade: Remotely over the air, via BlueEye.

Operating Temperature: -20°C to +40°C (-4°F to 104°F).

Auto Learn: Yes.

Colors White.

Dimensions: 5.61W x 9.15H x 1.75D cm (2.2W x 3.6H x 0.7D in.).

Weight: 80 g.
