CCTV ONLINE ALARMS

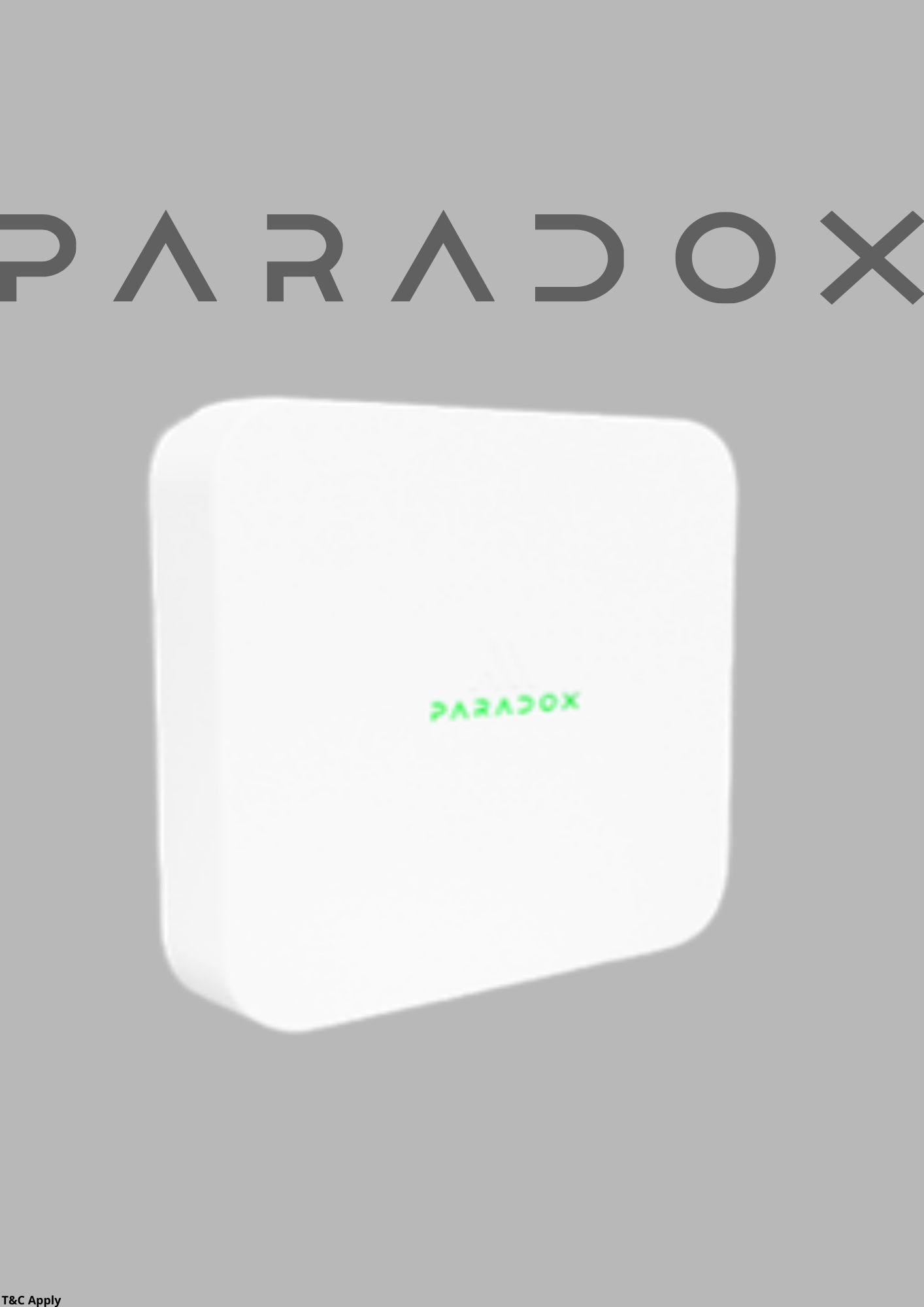

M25 CONSOLE WIFI
M25 CONSOLE WIFI
Regular price
R 4,706.00 ZAR
Regular price
Sale price
R 4,706.00 ZAR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Paradox M25 Console is a highly versatile, scalable security system supporting wired, wireless, and Ethernet expansions with remote upgrades and system backups. Designed for easy installation via PoE Ethernet and intuitive setup, it features robust wireless communication, flexible user roles, and powerful automation including scheduled arming/disarming. The M25 offers advanced temperature monitoring, supports up to 128 users, and integrates with the BlueEye mobile app for full remote control and instant alerts. Future-ready, it enables seamless upgrades to video, access control, and home automation.
Features:
-Hybrid wireless console.
-Security, Video Verification, Access Control, programmable outputs 3 communication channels - Ethernet, Wi-Fi, LTE.
-PoE, 10W power consumption.
-10 partitions, 128 users, 100 zones, 128 remotes.
-GFSK wireless, 914 MHz or 868 MHz, 75 nodes per system.
-Auto-lean wireless and Ethernet devices.
-Temperature monitoring and control.
-Safe direct reporting to CMS up to 4 channels without cloud dependency.
-User-friendly, simple, mobile application.
-Certifications: CE, EN 50131-3, EN 50131-6,EN 50136-1, EN 50136-2, EN 50131-5-3,FCC 15.247.
Technical Specifications:
-Power Supply: PoE, 10W max
-Wireless Type: GFSK with frequency and encryption hopping
-RF Power: 868 MHz: +14 dBm, 914 MHz: +22 dBm, Coin battery devices: +14 dBm
-RF Frequency: 868 MHz (865.05 – 867.95 MHz), 914 MHz (902.25 – 927.55 MHz)
-Battery: 3.7V Lithium-ion, 5000 mAh
-Battery Backup Time estimates: Ethernet: 26 hours , Wi-Fi: 24 hours, LTE: 20 hours
-Operating Temperature: -25°C to +55°C
-Battery Charging Limit: Disabled below 0°C and above +55°C
-Ethernet/Wi-Fi: Built-in 2.4 GHz B/G/N Wi-Fi
-LTE: Built-in, main or backup channel
-Users: 128 (Owner, Master, Users, Guests, Maintenance)
-BlueEye User Access: Optional, enabled per user by Owner/Master
-JPEG Images: Yes, for users and partitions
-Partitions: 10
-Bell Output: Wireless only
-Total Zones: 100
-Remotes: 128 max (4 per user)
-Wireless Devices: 75 max
-Device Adding Methods: Auto-learn, QR scan, manual serial input
-Wireless Repeaters: Max 4 (Ethernet or wireless)
-Programmable Outputs (PGMs): Up to 48 (with expanders)
-PGM Activation: Manual, schedule, events, temperature, or sunset/sunrise
-PGM Status Verification: With zone and timer-based error display
-Ethernet Expansion Devices: Up to 45 (keypads, cameras, access modules)
-Video Verification: Up to 16 cameras
-Access Control: Up to 16 doors
-Arming Options: Stay, Sleep, Full Arm
-Auto Arm/Disarm: Schedule or no movement, Sleep to Stay, Stay to Disarm
-Event Logs: Security Events: 1000, Disarmed Events: 100, Access Events: 7500
Installation and Programming: By registered installer (Paradox Company ID) Via BlueEye app or PC software
Dimensions: 12.4 × 12.4 × 3.55 cm (4.89 × 4.89 × 1.4 in.)
