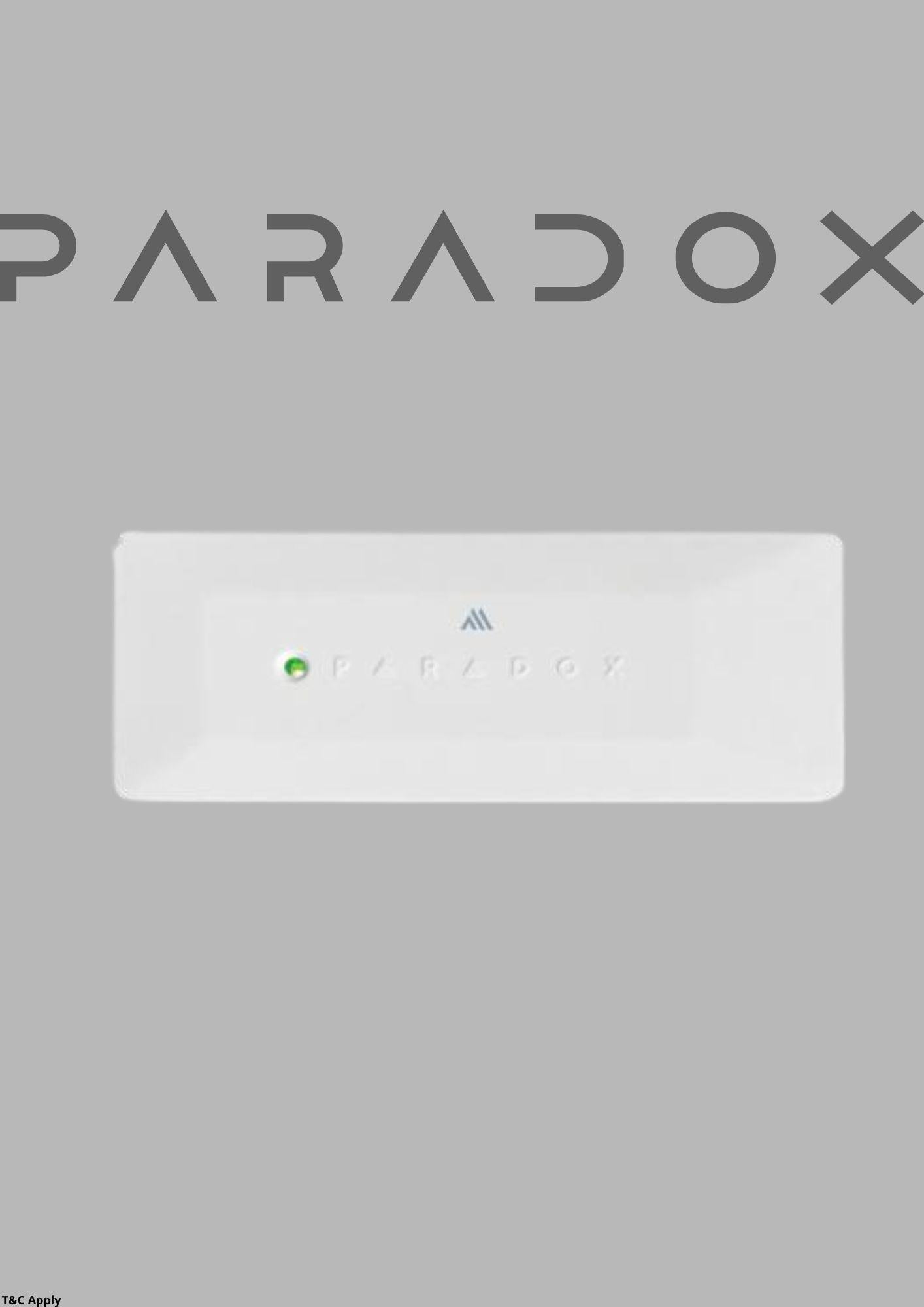

AMD12M MOTION SENSOR

Paradox AMD12M is a compact, indoor motion sensor using a three-axis accelerometer for precise movement detection. It features adjustable sensitivity, detection based on sustained motion, a built-in temperature sensor, and over 3 years of battery life.



-Three-axis accelerometer sensor.

-Sensitivity level control.

-Detection based on the number of seconds of constant motion.

-3+ years of battery life with normal usage.

-Temperature sensor.

-Easy and fast installation.

-Certifications: CE, FCC 15.247.



-Wireless Type: GFSK two-way with frequency and encryption hopping.

-Sensor Type: Three-axis accelerometer.

-RF Frequency: 868 (865.05 - 867.95) MHz or 914 (902.25 - 927.55) MHz. May vary by region.

-RF Power: 868 MHz up to +14 dBm radiated, 914 MHz up to +14 dBm maximum, power managed.

-Transmission Time: Less than 20 ms.

-Supervision Time: 20 minutes.

-Battery: 1 x CR2032 lithium, 3+ years of battery life with normal usage.

-Installation Environment: Indoor.

-Firmware Upgrade: Remotely over the air, via BlueEye.

-Operating Temperature: -20°C to +50°C (32°F to 122°F).

-Auto Learn: Yes.

-Colors: White.

-Dimensions: 30W x 76H x 10D mm (1.2W x 3H x 0.4D in.).

-Weight: 20 g.
