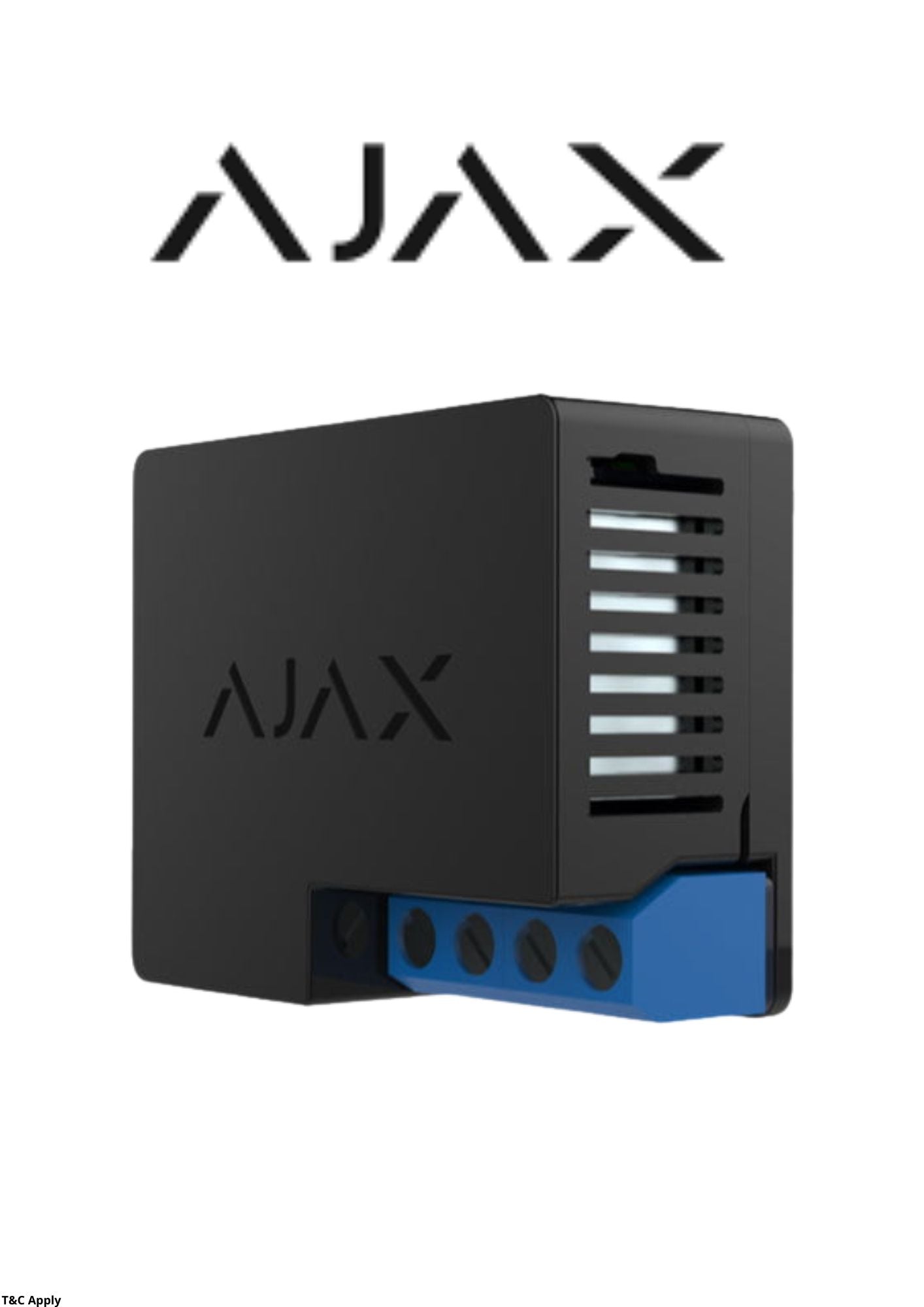

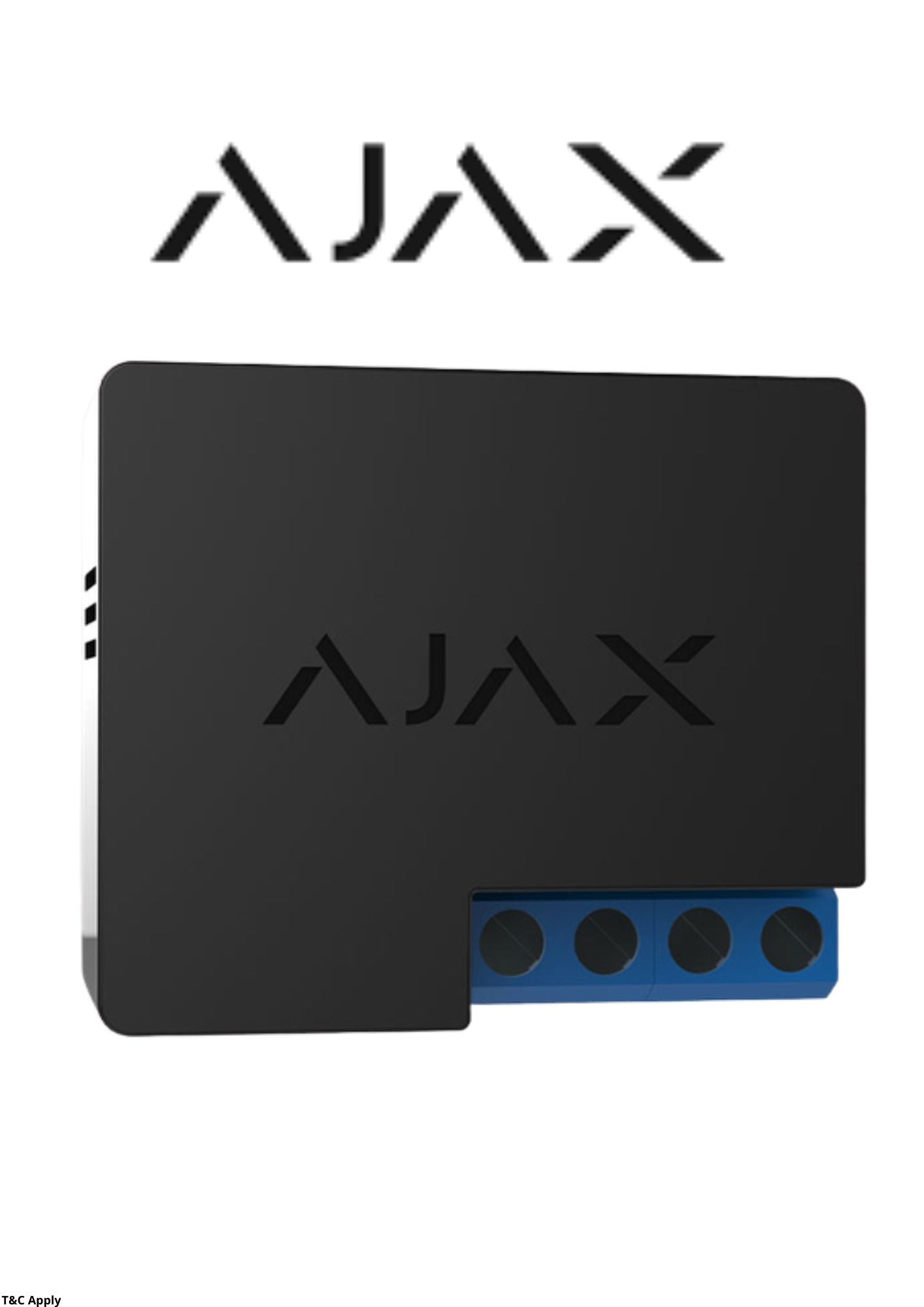

Ajax Relay

Power supply: 7 - 24VDC
Maximum load current: 5A at 36 VDC 13A at 230 VAC
Relay: N/O or N/C
Operating frequencies - 868.0 - 868.6 MHz
Dimensions: 39 x 33 x 18 mm

• Tech specs  Classification  Radio channel relay unit  Device type  Wireless  Installation method  Into electric switchboard, junction box  Compatibility  Operates only with hub Ajax and ReX  Actuating element  Electromagnetic relay  Relay service life  200,000 switch-ons  Voltage protection  Max — 36.5 V, min — 6.5 V  Maximum load current  5A at 36V DC, 13A at 230V AC  Maximum current protection  No  Maximum temperature protection  65°C at the place of installation  Electric power meter function  No  Energy consumption parameter check Voltage  Alarm signal delivery time 0.15 s  Power supply 7—24 V (DC only)  Operation modes ● Impulse  ● Bistable  Contact state ● Normally open  ● Normally closed  Adjustable pulse duration 0.5 – 255 sec  Jeweller radio technology Communication range with central unit — up to 1,000  m in an open space  Two-way communication between devices  Operating frequencies — 868.0−868.6 MHz  Self-adjusting RF output power — up to 25 mW  Block encryption based on AES algorithm  Device scanning period — 12−300 s    Learn more about Jeweller >  Operating temperature range 0°С to +64°С  Permissible humidity Up to 75%  Protection class of body IP20  Anti-sabotage Protection against fraud  Jamming detection  Remote setting and testing +  Dimensions 39 х 33 х 18 mm  Weight 32 g  Certification CE  Warranty Replacement and repair within 24 months of the date  of sale.    Learn more >  Complete set Relay  Installation set  User’s guide

  Power supply: 7 - 24VDC
• Maximum load current: 5A at 36 VDC 13A at 230 VAC
• Relay: N/O or N/C
• Operating frequencies - 868.0 - 868.6 MHz
• Dimensions: 39 x 33 x 18 mm
